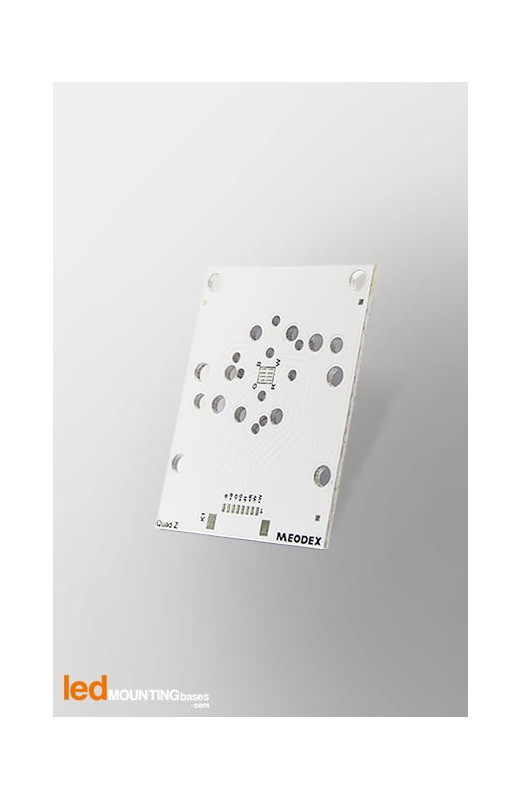

PCB for 4 LED Lumileds Luxeon Z / Multiple LED lens compatible
6,90 € This REC MCPCB is an exclusive design and is manufactured by LED Mounting Bases Company. This printed circuit board with Aluminum base has been developped for Lumileds Luxeon Z and it’s compatible Ledil,Led Engin,Carclo,Gaggione,Led Link.
The REC-2W-4-LUX-Z-MULTI IMS (Insulated Metal Substrate) allows you to quickly create your prototypes of LED modules based on LumiledsLuxeon Z LED at reasonable price. With it’s high thermal conductivity of 2 W/mK , this printed circuit board is able to drain the heat of the LED components to he Aluminum base, which is ideal for LED lighting. This Metal Core PCB is manufactured with UL certified Aluminum substrates.
4LEDs
2W/mK
ctn
UL
REC PCB for Lumileds Luxeon Z
| Compatible LED | Lumileds Luxeon Z |
| Number of LED | 4 |
| Compatible LED Lens | Ledil,Led Engin,Carclo,Gaggione,Led Link |
| MCPCB shape | REC |
| Dimension | 55 x 45 mm |
| Thickness | 1.6 mm |
| Material | Aluminum Approved Material UL |
| Thermal Conductivity | 2 W/mK |
