logo Led Mounting Bases pdf


1,10 €
Part Number : S-3W-1-CRE-XML-000-CU

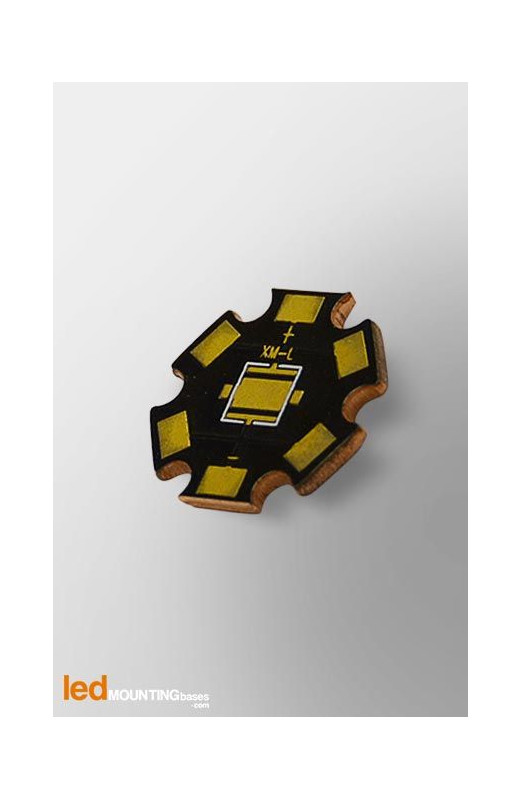

This STAR MCPCB is an exclusive design and is manufactured by LED Mounting Bases Company. This printed circuit board with Copper base has been developped for Cree XM-L .
The S-3W-1-CRE-XML-000-CU IMS (Insulated Metal Substrate) allows you to quickly create your prototypes of LED modules based on CreeXM-L LED at reasonable price. With it’s high thermal conductivity of 2 W/mK , this printed circuit board is able to drain the heat of the LED components to he Copper base, which is ideal for LED lighting. This Metal Core PCB is manufactured with UL certified Copper substrates.


-20 Item Items 0 Item

Out of Stock Order is possible shipment under 15 days

The minimum purchase order quantity for the product is 1

Contact US
Decreasing prices
Qty U.P
1 1,10 €
10 0,99 €
50 0,88 €
100 0,77 €
500 0,66 €
1000 0,39 €
Data Sheet

STAR PCB for Cree XM-L

Compatible LED Cree XM-L
Number of LED 1
Dimension 19 mm
Thickness 1.6 mm
Material Copper Approved Material UL
Thermal Conductivity 2 W/mK
