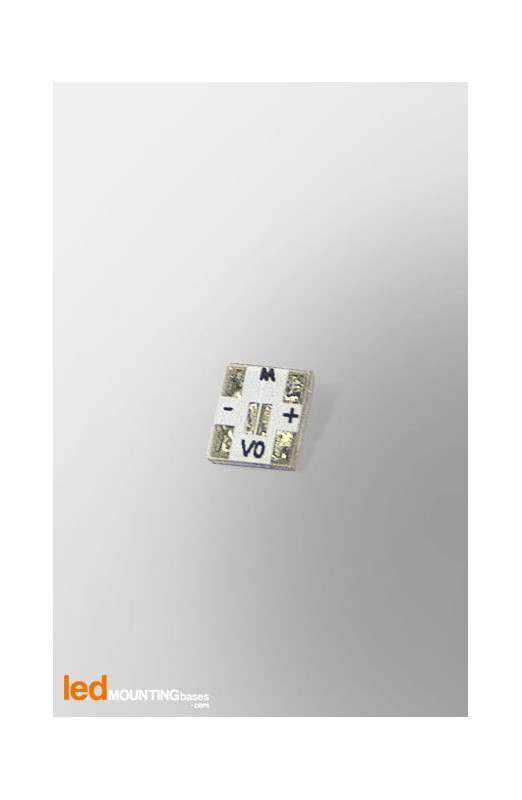

PCB for 1 LED Lumileds Luxeon Z / LED lens compatible

0,53 €
Part Number : REC-5x5-2W-1-LUX-Z

This REC MCPCB is an exclusive design and is manufactured by LED Mounting Bases Company. This printed circuit board with Aluminum base has been developped for Lumileds Luxeon Z .
The REC-5x5-2W-1-LUX-Z IMS (Insulated Metal Substrate) allows you to quickly create your prototypes of LED modules based on LumiledsLuxeon Z LED at reasonable price. With it’s high thermal conductivity of 2 W/mK , this printed circuit board is able to drain the heat of the LED components to he Aluminum base, which is ideal for LED lighting. This Metal Core PCB is manufactured with UL certified Aluminum substrates.

1LED
2W/mK
ctn
UL

3316 Item Items

In Stock Available in 24 or 48h *EXTRAS. Delivered in 3 to 5 days. (Order more is possible shipment under 15 days)

The minimum purchase order quantity for the product is 1

Data Sheet

REC PCB for Lumileds Luxeon Z

Compatible LED Lumileds Luxeon Z
Number of LED 1
MCPCB shape REC
Dimension 5 x 5 mm
Thickness 1.6 mm
Material Aluminum Approved Material UL
Thermal Conductivity 2 W/mK
